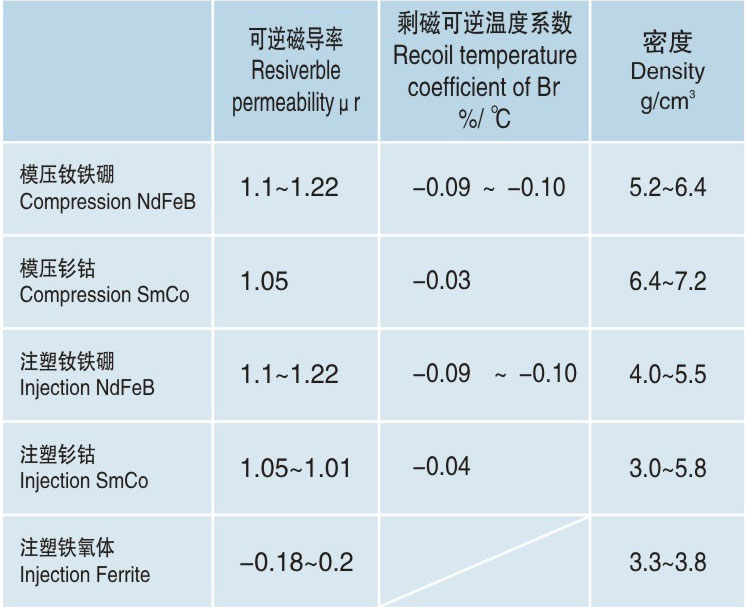

| 衫钻的其他物理特性 Other SmCo Physical Properties | 衫钻的其他物理特性 Other SmCo Physical Properties |
 |  |
 |  |
粘结磁体产品性能表 Bonded Magnets Properties
Item名称 | Grade 牌号 | Remanence剩余磁感应强度(B)(kGs) | Coercive force矫顽力(H)(kOe) | Intrinsic coercive内禀矫顽力(H)(kOe) | Maximum energy 最大磁能积(BH)(MGOe) | p/(g/cm³) |
CompressionNdFeB模压钕铁硼 | NFZ-4 | 3.5~4.5 | 3.0~4.0 | 7.0~8.5 | 3.5-4.5 | 4.5~5.5 |
NFZ-5 | 4.6~5.5 | 3.5~4.0 | 7.5~9.0 | 4.6~5.5 | 5.0~5.6 | |
NFZ-6 | 5.6~6.0 | 3.8~4.2 | 7.0~9.0 | 5.6~6.5 | 5.6~6.1 | |
NFZ-7 | 6.0~6.3 | 4.2~5.0 | 7.0~10.0 | 6.6~7.5 | 5.6~6.1 | |
NFZ-8 | 6.0~6.5 | 4.8~5.4 | 8.0~10.0 | 7.6~8.5 | 5.7~6.1 | |
NFZ-9 | 6.6~7.0 | 5.1~5.6 | 8.0~10.0 | 8.6~9.5 | 5.8~6.2 | |
NFZ-10 | 6.8~7.3 | 5.2~5.8 | 8.0~10.0 | 9.6~10.5 | 5.8~6.2 | |
NFZ-12 | 7.1~7.5 | 5.5~5.9 | 8.0~10.0 | 10.6~12.0 | 6.0~6.2 | |
NFZ-7M | 5.9~6.3 | 4.6~4.9 | 10.0~14.0 | 6.6~7.5 | 5.7~6.1 | |
NFZ-8M | 6.2~6.8 | 4.9~5.5 | 10.0~14.0 | 7.6~8.5 | 5.7~6.1 | |
NFZ-9M | 6.6~7.0 | 5.1~5.6 | 10.0~15.0 | 9.0~10.0 | 5.7~6.1 | |
CompressionSmCo模压钐钴 | SCZ-4 | 3.8~4.2 | 2.5~3.5 | 8.5~13.0 | 3.5~4.5 | 6.4~7.0 |
SCZ-5 | 4.1~5.4 | 3.2~4.5 | 9.0~15.0 | 4.6~5.5 | 6.5~7.0 | |
SCZ-6 | 5.0~5.5 | 3.7~4.6 | 8.0~15.0 | 5.6~6.5 | 6.5~7.0 | |
SCZ-7 | 5.5~6.0 | 3.8~4.9 | 8.0~15.0 | 6.6~7.5 | 6.5~7.0 | |
SCZ-8 | 5.8~6.4 | 4.2~5.5 | 8.0~15.0 | 7.5~8.5 | 6.6~7.0 | |
SCZ-9 | 6.1~6.8 | 5.2~6.0 | 9.0~15.0 | 8.6~10 | 6.6~7.1 | |
InjectionNdFeB注塑钕铁硼 | NFI-3 | 3.0~3.7 | 3.2~4.0 | 8.0~9.5 | 2.5~3.5 | 3.5~4.3 |
NFI-4 | 3.7~4.5 | 3.5~4.2 | 8.0~9.5 | 3.6~4.5 | 4.0~5.0 | |
NFI-5 | 4.6~5.2 | 3.8~4.5 | 8.0~9.5 | 4.6~5.5 | 4.5~5.0 | |
NFI-6 | 5.3~5.6 | 4.2~5.0 | 8.0~9.5 | 5.6~6.5 | 5.0~5.2 | |
NFI-7 | 5.7~6.0 | 4.2~5.2 | 8.0~9.5 | 6.6~7.5 | 5.0~5.5 | |
NFI-8 | 6.1~6.4 | 4.8~5.4 | 8.0~9.5 | 7.5~8.5 | 5.4~5.6 | |
InjectionSmCo注塑钐钴 | SCI-6 | 5.2~5.8 | 3.8~4.8 | 8.0~15.0 | 6.0~7.0 | 4.6~5.5 |
SCI-7 | 5.7~6.1 | 4.2~5.0 | 8.0~15.0 | 7.0~8.0 | 5.1~5.4 | |
SCI-8 | 6.0~6.4 | 4.5~5.6 | 8.0~15.0 | 8.0~9.0 | 5.3~5.6 | |
SCI-9 | 6.3~6.6 | 5.2~5.8 | 8.0~15.0 | 9.0~10.0 | 5.4~5.8 | |
Injection Ferrite注塑铁氧体 | FOI-4T | 1.35~1.55 | 1.0~1.4 | 1.82~2.4 | 0.4~0.6 | 3.5~3.8 |
FOI-12 | 2.45~2.65 | 2.2~2.6 | 2.7~3.2 | 1.4~1.6 | 3.3~3.6 | |
FOI-14 | 2.55~2.80 | 2.2~2.6 | 2.7~3.3 | 1.6~1.9 | 3.55~3.65 | |
FOI-16 | 2.8~3.1 | 2.26~2.55 | 2.7~3.3 | 1.95~2.05 | 3.65~3.75 | |
1、国际单位制(SI)与电磁单位制(CGSM)的换算关系：1T=10*Gs，1A/m=4π×10*Oe，1J/m=4π×10Gs·Oe 2、In addition to the above grades， our company also can produce specail performance for customers. Welcome to communicate with us.应客户要求，生产厂商可 提供其他补充牌号的材料。 3、Tstands for the isotropic material T为各向同性材料。 4、Each material grades can be selected the different polymer plastic according to customer requirements ，such as PA6、PA12、PPS， of which materials the maximum operating temperature isPA6：150℃；PA12：120℃；PPS：180℃。每一材料牌号均可根据客户要求选用不同的高分子塑料，如PA6、PA12、PPS等，相应产品的最 高工作温度：PA6：150℃；PA12：120℃；PPS：180℃。 | ||||||
