Isolator Circulator series

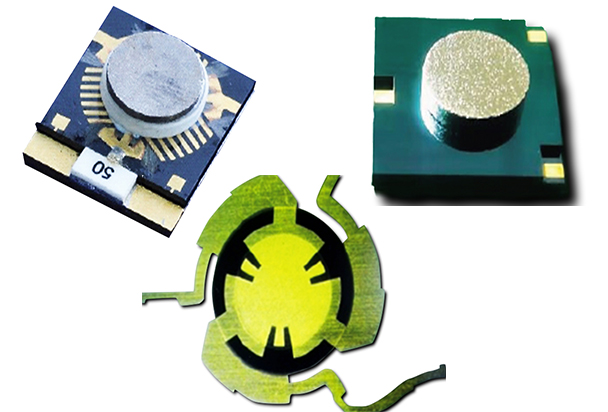

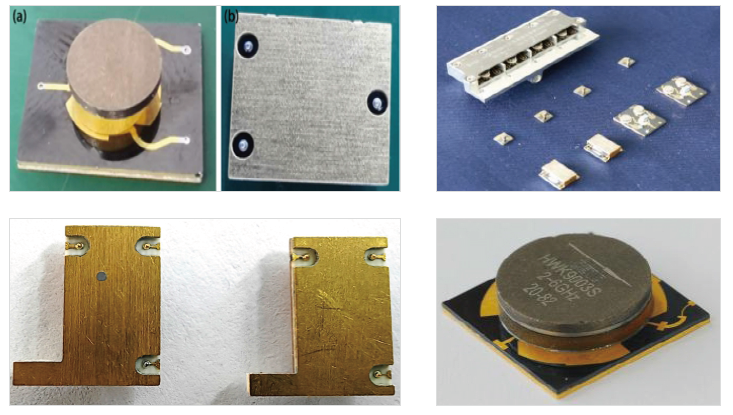

Microwave isolator&circulator
Freq. range：2～45GHz
Power level: 2～100W
Package type: SMT, microstrip, CCGA
Implementation: full magnetic microstrip, ceramic nesting,
MEMS
Features：tight structure, low IL, wide freq. band, high
integration Technical performance
Learn more
Power level: 2～100W
Package type: SMT, microstrip, CCGA
Implementation: full magnetic microstrip, ceramic nesting,
MEMS
Features：tight structure, low IL, wide freq. band, high
integration Technical performance
Isolator Circulator series

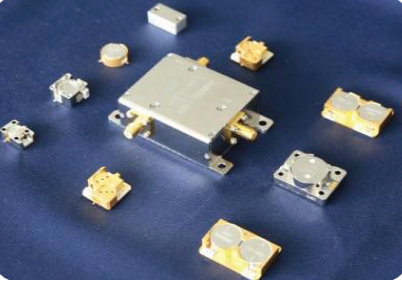

Microstrip isolator&circulator
indication range:
High integration
Frequency range covers 2.5～40GHz
Through power covers 2W～50W
Bandwidth: Up to 3 octaves
Full magnetic microstrip
Learn more
High integration
Frequency range covers 2.5～40GHz
Through power covers 2W～50W
Bandwidth: Up to 3 octaves
Full magnetic microstrip
Isolator Circulator series

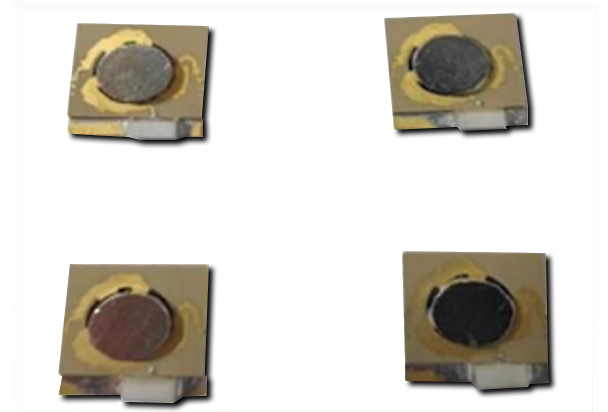

Ceramic nested microstrip isolator Circulator
Advantages: To achieve theproduct wide bandwidth, miniaturization, high power capacity requirements. In the range of 4-18G, the power of 2-10W full magnetic products, ceramic nesting process products than the same frequency full magnetic products, the size is reduced by 5 to 10%, and the power capacity is increased by 3 to 5 times.
Learn more
Isolator Circulator series

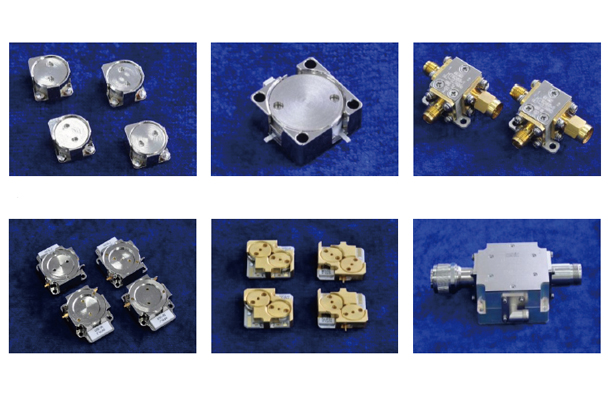

Stripline / Coaxial isolator & circulator
F r e q . r a n g e：0 . 0 5～40GHz
Power：50W～50kW
B a n d w i d t h : 1 0 % 、20%、30%、40%、three octave
Interface: Microstrip, stripline, coaxial, coaxial to microstrip, coaxial to SMT
Features: Low IL, wide bandwidth, various interfaces
Learn more
Power：50W～50kW
B a n d w i d t h : 1 0 % 、20%、30%、40%、three octave
Interface: Microstrip, stripline, coaxial, coaxial to microstrip, coaxial to SMT
Features: Low IL, wide bandwidth, various interfaces
Isolator Circulator series

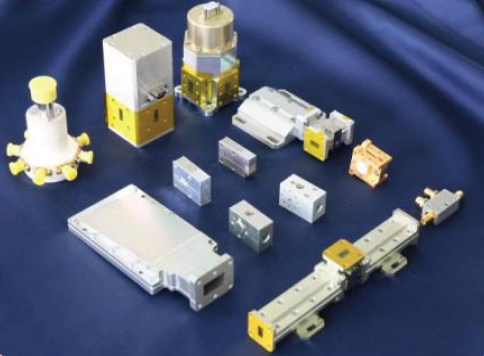

Waveguide isolator & circulator
Freq. range：P、L、S、C、X、Ku、K、Ka、Q、V、E、W band
Bandwidth:10%、20%、30%、40%、2 Octaves
Peak power：1W～40 MW
AVG power：1 W～100 kW
Interface: standard or customized waveguide
Learn more
Bandwidth:10%、20%、30%、40%、2 Octaves
Peak power：1W～40 MW
AVG power：1 W～100 kW
Interface: standard or customized waveguide
