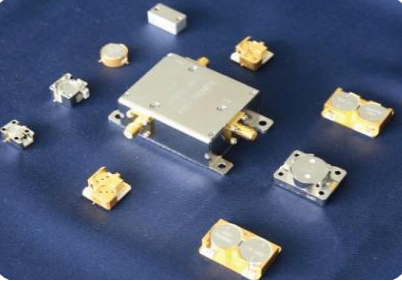

F r e q . r a n g e：0 . 0 5～40GHz
Power：50W～50kW
B a n d w i d t h : 1 0 % 、20%、30%、40%、three octave
Interface: Microstrip, stripline, coaxial, coaxial to microstrip, coaxial to SMT
Features: Low IL, wide bandwidth, various interfaces
Technical performances
Band | Relativeband wide th | Parameters | Power， DC10%(W) | Dimension(mm | ||
VSWR | IL(dB) | Isolation(dB) | ||||
Pb and | 10% | 1.25 | 0.35 | 20 | 5000 | 28*28*10.5 |
470~610MHz | 1.3 | 0.4 | 18 | 5000 | 31*43*10.5 | |
Lb and | 10% | 1.15 | 0.25 | 24 | 3000 | 20*20*8 |
1.2~1.4GHz | 1.2 | 0.3 | 22 | 3000 | 16*16*7 | |
Sb and | 10% | 1.2 | 0.3 | 22 | 2000 | 16*16*7 |
2.7~3.5GHz | 1.3 | 0.4 | 18 | 2000 | 14*14*7 | |
Cb and | 10% | 1.15 | 0.3 | 25 | 1000 | 13*13*6.4 |
5~6GHz | 1.2 | 0.4 | 20 | 1000 | 10*10*6 | |
X band | 10% | 1.15 | 0.3 | 25 | 500 | 9*10*5.1 |
8~12GHz | 1.25 | 0.4 | 18 | 500 | 9*10*5.1 | |
Kub and | 10% | 1.15 | 0.35 | 25 | 500 | 9*10*5.1 |
14~18GHz | 1.3 | 0.5 | 18 | 500 | 9*10*5.1 | |
Kb and | 10% | 1.2 | 1 | 22 | 200 | 10.2*26*12.5 |
18~22GHz | 1.25 | 1.2 | 20 | 200 | 10.2*26*12.5 | |
Kab and | 10% | 1.3 | 1.3 | 20 | 200 | 10.2*26*12.5 |
27~31GHz | 1.3 | 1.5 | 18 | 200 | 10.2*26*12.5 | |
