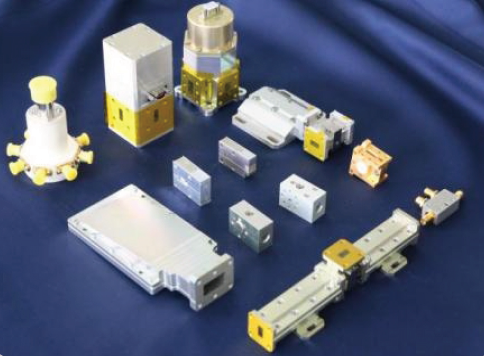

Freq. range：P、L、S、C、X、Ku、K、Ka、Q、V、E、W band
Bandwidth:10%、20%、30%、40%、2 Octaves
Peak power：1W～40 MW
AVG power：1 W～100 kW
Interface: standard or customized waveguide
Electrical performances
Band | Relativebandwidth | Parameter | AVG power | ||
VSWR | IL(dB) | Isolation(dB) | |||
Pb and (0.3~1GHz) | 10% | 1.2 | 0.25 | 20 | 1~20kW |
Lb and(1~2GHz) | 10% | 1.2 | 0.25 | 20 | 1~4kW |
Sb and(2~4GHz) | 10% | 1.2 | 0.2 | 20 | 1~2kW |
Cb and(4~8GHz) | 10% | 1.2 | 0.2 | 20 | 0.5~1kW |
X band(8~12GHz) | 10% | 1.2 | 0.2 | 20 | 500~1000W |
Kub and ( 12~18GHz) | 10% | 1.2 | 0.2 | 20 | 500W |
Kb and ( 18~26.5GHz) | 10% | 1.2 | 0.2 | 20 | 300W |
Kab and(26.5~40GHz) | 10% | 1.25 | 0.25 | 20 | 100W |
Qb and ( 30~50GHz) | 10% | 1.35 | 0.4 | 18 | 50W |
Vb and ( 50~75GHz) | 10% | 1.35 | 0.6 | 18 | 20W |
Eb and ( 60~90GHz) | 10% | 1.35 | 0.8 | 18 | 5W |
Wb and ( 75~110GHz) | 5% | 1.35 | 0.8 | 18 | 2W |
Db and ( 110~170GHz) | 5% | 1.5 | 1 | 15 | 2W |
